Additional information
| Function | Full Overlay, Half Overlay, Inset |
|---|
-

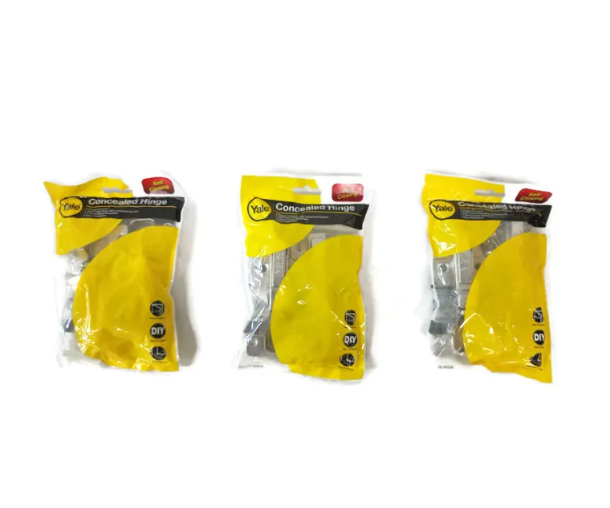

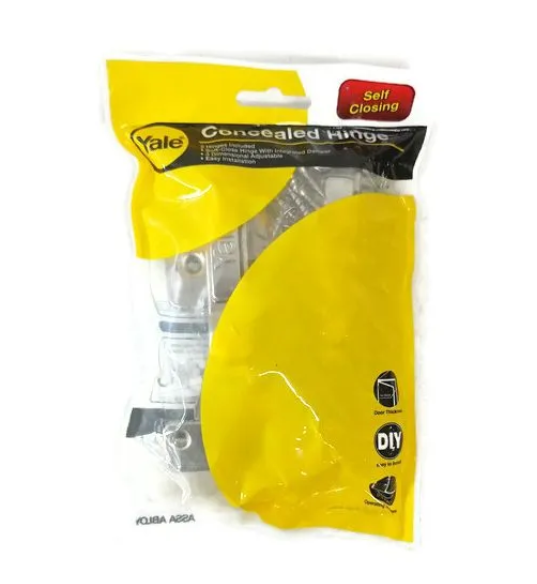

Authentic Yale Conceal Hinges
-

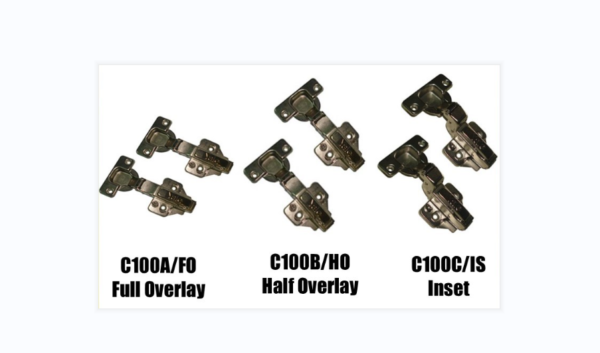

Type:
-

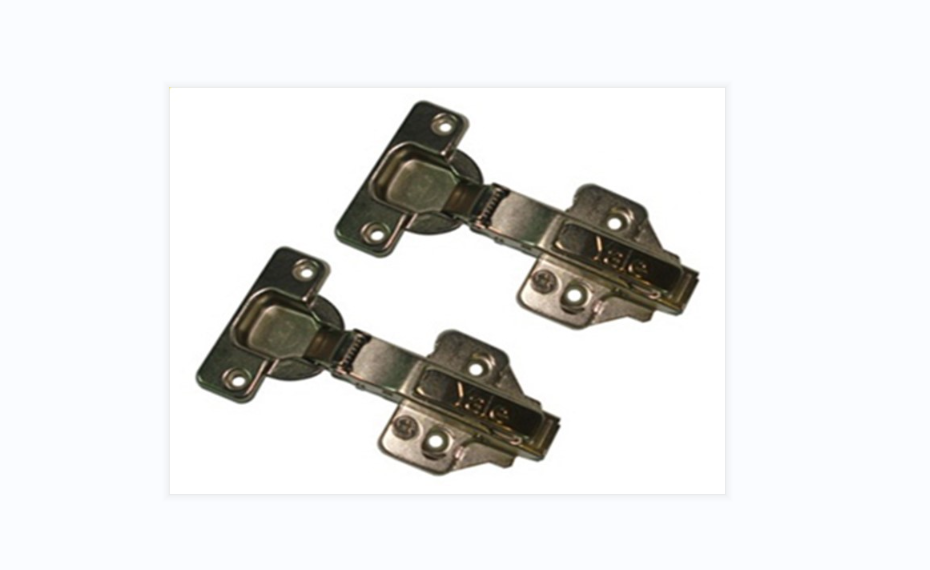

Full Overlay (C100A/FO)
-

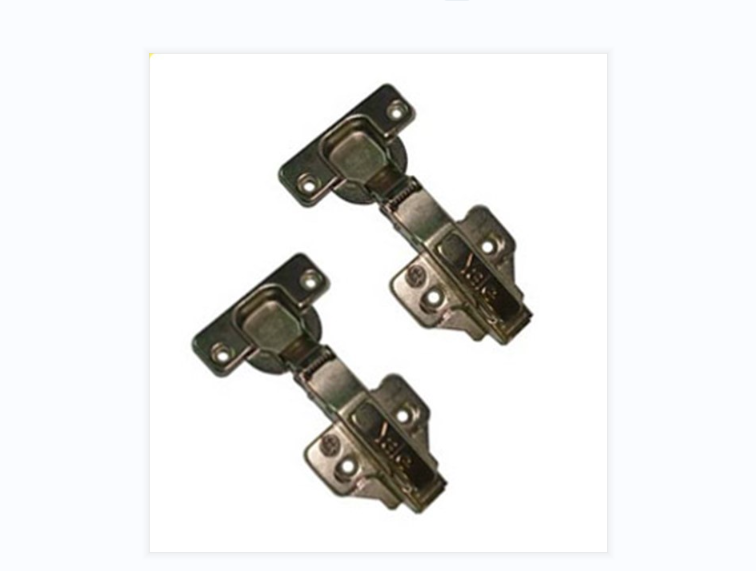

Half Overlay (C100B/HO)
-

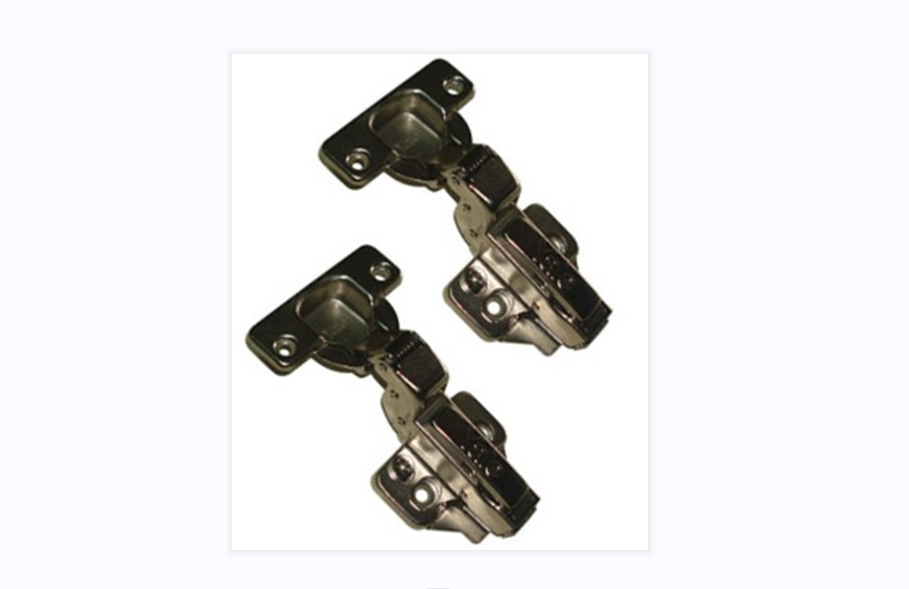

Inset (C100C/IS)
-
-
• 3 Hinges styles to fit for different door structures
-
Fully concealed flush looking appearance
-
Soft closing, Snap-On design and cam adjustable
-
Hinge 100 degree with integrated damper
-
Adjustable in 3 directions (1mm)
-
Up and down
-
Left and right
-
In and out
-
Opening angle: 100 degree
-
Depth of hinge cup: 10mm
-
Diameter of Hinge cup: 35mm
-
Range of door thickness: 14-24mm
-
Possible drilling distance on the door: 3-7mm
