Authentic Schlage Extra Heavy Duty Industrial Entrance Lever Lock with Keys
-
Finish: Satin Chrome
-
Model: ND53PD EV RHO 626
-
13-047 Latch
-
10-025 Strike
-
Cyl: 23-065
-
Handing: All ND-Series lever locksets are non-handed.
-
Door Thickness: 1-5/8″ to 2-1/8″ (41mm – 54mm) standard including Vandlgard functions. 1-3/4″ – 2″ for function D85. See accessories for spacers required for 1-3/8″ doors.
-
Backset: 2-3/4″ (70 mm) standard. 2-3/8″, 3-3/4″ and 5″ (60 mm, 95 mm, 127 mm) optional.
-
Lock Chassis: Zinc plated for corrosion resistance.
-
Latchbolt: Steel, 1/2″ (12mm) throw, deadlocking on keyed and exterior functions. 3/4″ (19 mm) throw anti-friction latch available for pairs of fire doors.
-
Cylinder: 6-pin Everest C123 keyway standard
-
Keying Features Available: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
-
Keys: Two patented nickel silver keys per lock.
-
he ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.
-

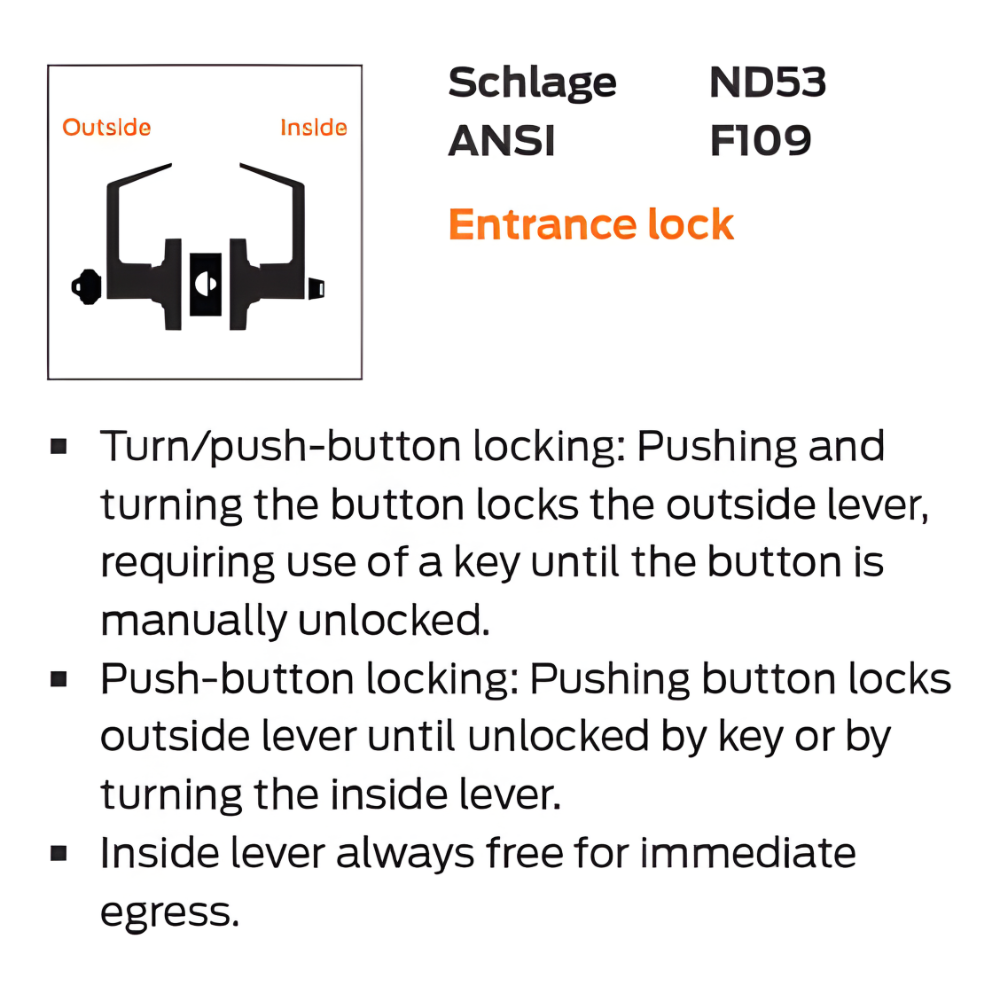

ANSI Function F109 ? Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
-
Significantly exceeds ANSI/BHMA Grade 1 requirements
-
Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
-
Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
-
The strongest cylindrical lock Schlage has ever built
-
Made in Mexico
